Evacuated Tubes 10

See our Evacuated Tube range.

Evacuated Tube 10 | Evacuated Tube 15 | Facade | Flat Plate 2.0-2 | Flat Plate 2.0-4

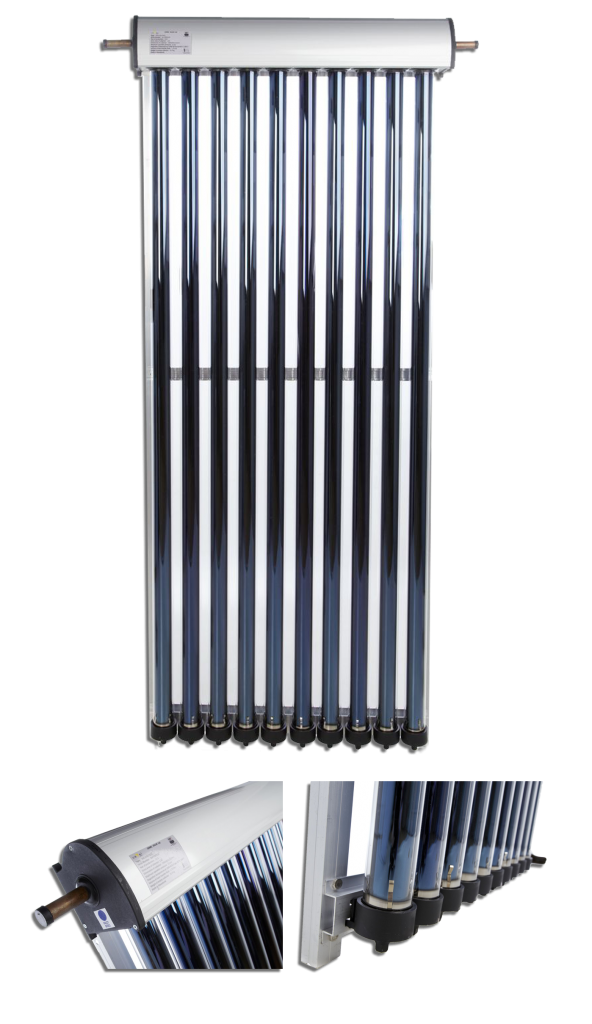

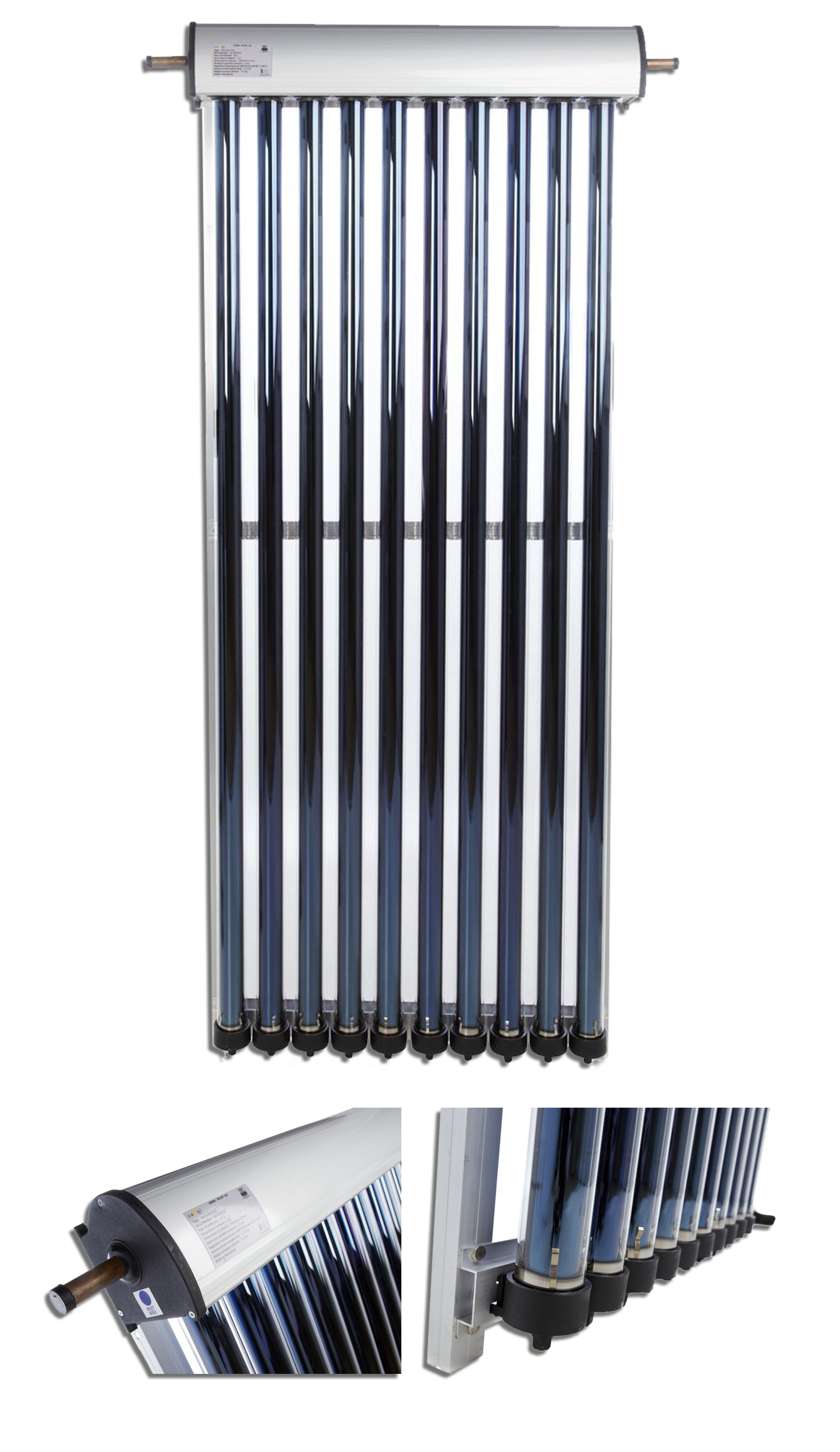

This is Camel Solar’s new Evacuated Tube Collector. The collector is composed of 10 evacuated tubes with highly efficient selective coatings. The Glass tube has a PVD (physical vapour deposition) selective coating inside enhancing the absorption of the tube.

Inside the glass tube are U type copper pipes. These pipes are welded to an additional absorber. This absorber has its own patented selective coating increasing the heat transfer to the copper pipes and intern to the heat transfer fluid.

The U type copper pipes join two separate manifolds which are carefully placed in an anodized aluminum box and insulated with a high density rock wall.

Combining the latest research and technology this is one of the most efficient collectors on the market today and has recieved Solar Keymark Certification.

The Collector is perfect for domestic, commercial and industrial applications with a stagnation temperature of 250°c. Clients are using these panels for swimming pool applications, heating pools past 30°c without any other form of energy.

Contact us

Phone
00 389 2 2602029

Address
Ul. Kacanicki Pat bb
1000 Skopje
Republic of Macedonia

Email
Info@camel-solar.com
Sales@camel-solar.com
Marketing@camel-solar.com

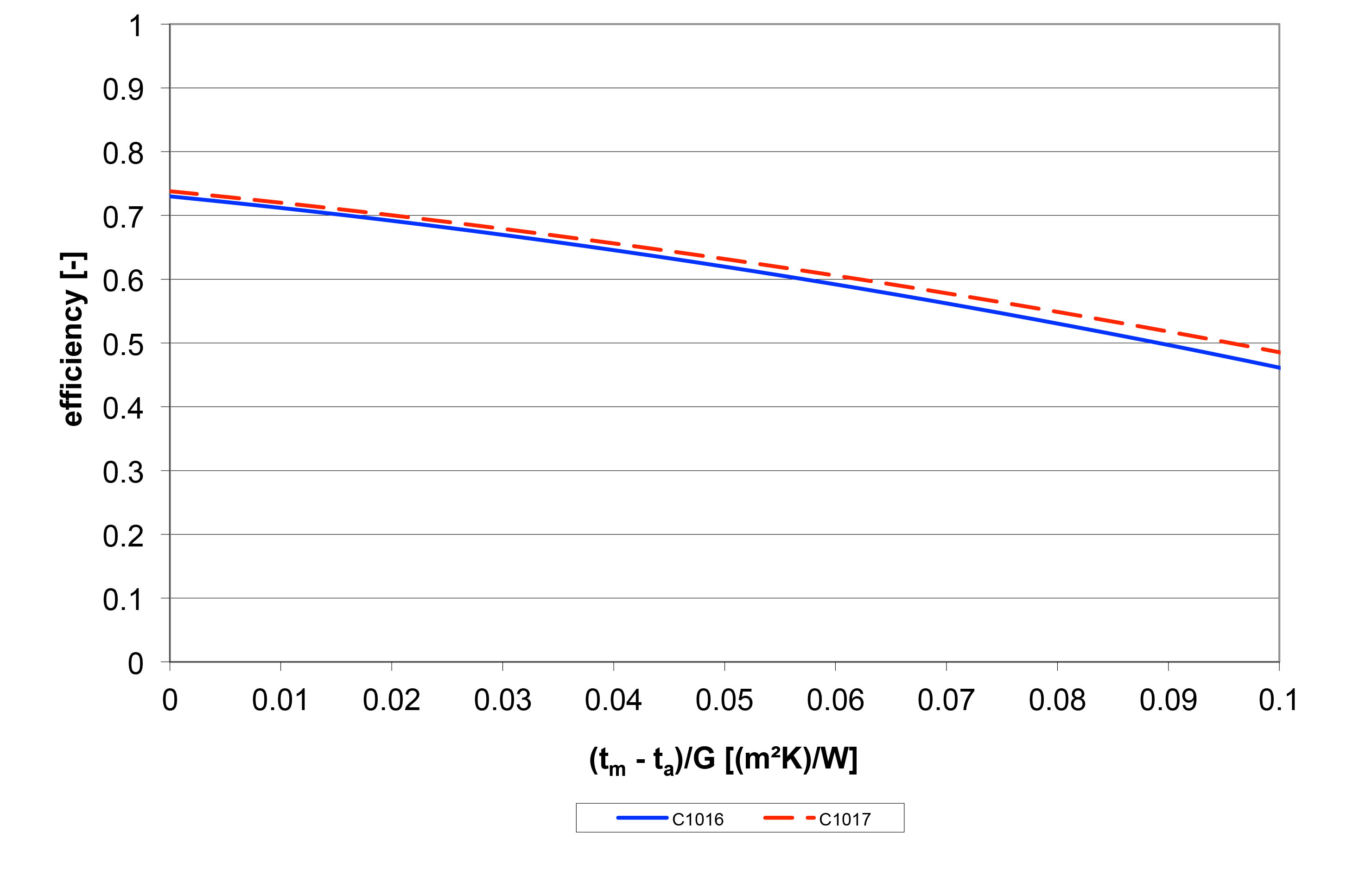

Efficiency Curve



1 | Aluminium Manifold   2 | Rubber Seal  3 | Thermal Sidewall Insulation  4 | Absorber  5 | Glass Tube Double Wall Vacuum  6 | Hot Supply Manifold  7 | Cold return Manifold
